Saturday, February 27, 2010

ReSharper 4.5 Memory Consumption – Hopefully The Last Post On This Subject

I posted in the past about the memory consumption of ReSharper 4.5 with large solutions containing C# but also many C++ projects with over one million line of codes. We installed at least one newer patch in the meantime and it seems that the memory consumption issue caused by the combination of IntelliSense and ReSharper has disappeared in that once IntelliSense has built it’s cache, memory consumption goes back to normal.

In other words the guys at JetBrains seem to have found something, so this issue is solved for the time being. Some of my team members have switch ReSharper back on since.

But there is more admittedly smaller things. One of them is that updating the namespace for a class removes comments from the source code if those comments happen to be in the “wrong” location. Example: Create a WCF library. It will generate a service as an example in that project. Then set the default namespace in the project file to a different value. Go back to the service files (interface and implementation) and use ReSharper to move the interface and the service to the new updated namespace. One comment will disappear in each file. The generated comment is not a big deal. But it could also be a comment that you wanted to keep, let’s say a URL with important background details of your implementation. This behavior is reproducible with version 4.5 and Visual Studio 2008. I haven’t checked the beta for version 5.0, though. Chances are that this has been fixed as well.

Don’t get me wrong: ReSharper is a tool that helps improving the productivity and quality of your code significantly. Despite a few nuisances in the product I use ReSharper on a daily basis. Whether you use this tool or a different one, there is no excuse for not refactoring your code mercilessly!

Tuesday, February 23, 2010

Generic Empty Array

In certain situations empty arrays of a specific type can be handy. Of course you could always use “new MyType[0]” to instantiate such an empty array and in most situations this will be just fine.

However, if this happens often – like hundreds and thousands of times – then you may want to consider the implementation of a generic empty array. Although it consumes only a few bytes per instance it still contributes to memory consumption and fragmentation and the garbage collector has a few more things to do as well. With a generic empty array a single instance per type is shared throughout your code and those –generally small problems – are avoided in the first place.

Of course this idea is not new. For example check out this conversation on stackoverflow. However the code given there contains a small glitch and doesn’t compile, so here is the source code for the same thing with that glitch resolved:

   25 namespace csUnit.Common {

   26    public static class EmptyArray<T> {

   27       private static readonly T[] Empty = new T[0];

   28       public static T[] Instance {

   29          get { return Empty; }

   30       }

   31    }

   32 }

But wait, there is one more: When you use an array as a return value for a method you may also want to consider reading Eric Lippert’s thoughts on the subject. It definitely doesn’t hurt and may make your code more efficient and improve the design of it.

Friday, February 19, 2010

Whereabouts of csUnit

Ok, I’ve been a bit quiet on csUnit for a while. The reason being that I tried to get a plug-in for ReSharper running. And to some degree I got it to where the most simplest cases would work. At the moment I’m kind of stuck. I tried to figure out how to make it execute SetUp, FixtureSetUp, etc. methods but wasn’t successful so far. I tried to find some online documentation, got the sources for about half a dozen other plug-ins, and still. Maybe I’m just overlooking something very obvious.

So any of you, dear readers, if any of you can point me to more information or if anyone would like to help out, please get into contact at manfredmlange at gmail dot com. Thank you!

Of course I’ll continue searching for a solution in the meanwhile but I cannot make any promises.

Tuesday, February 16, 2010

Consuming a WCF Service

In one of my recent posts I demonstrated how to implement a simple WCF service using Visual Studio 2008. This time I’ll look at how to implement the client. In doing so I’ll highlight an important oversight of quite a few examples on the internet include at least one provided my Microsoft (see references)!

I’ll continue where I left the solution last time:


I’ll add a service client next. Many different options are possible, a Forms-base native application, a WPF-based client, an ASP.NET site, command line, and many more. For this example I’ll use an ASP.NET front-end.

Creating the ASP.NET Application

I’ll use add a new project to the solution. Here is the recipe:

  1. Select from the solution context menu “Add”, then “New Project…”
  2. In the tree on the left expand the “Visual C#” node, then click “Web”
  3. On the right select “ASP.NET Web Application”
  4. As a name enter “DuckWeb”.

Here is how it should look like just before you click “OK”:

image Click OK and your solution should now look like this (I collapsed the DuckServiceLibrary to save some space):

imageOpen the file Default.aspx in source mode and add a label, a text box and a button as follows:

    1 <%@ Page Language="C#" AutoEventWireup="true"

    2     CodeBehind="Default.aspx.cs" Inherits="DuckWeb._Default" %>

    3 <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN"

    4          "">

    5 <html xmlns="" >

    6 <head runat="server">

    7     <title></title>

    8 </head>

    9 <body>

   10     <form id="form1" runat="server">

   11     <div>

   12     <asp:Label ID="_pondNameLabel" runat="server" Text="Pond Name:">

   13     </asp:Label>

   14     <asp:TextBox ID="_pondNameTextBox" runat="server"></asp:TextBox>

   15     <asp:Button ID="_submitButton" runat="server" Text="Submit"

   16           onclick="_submitButton_Click" />

   17        <br />

   18        <br />

   19        <asp:Label ID="_pondStatusMessage" runat="server" Text="Status unknown.">

   20        </asp:Label>

   21     </div>

   22     </form>

   23 </body>

   24 </html>

When you view this in a browser it looks like this:


It doesn’t do anything yet, however. Next I’ll add an event handler to clicking the button. In the Design view of Visual Studio for Default.aspx I simply double-click the button which gives me the following handler:

   14 protected void _submitButton_Click(object sender, EventArgs e) {


   16 }

In this I’ll add the the code for the service. However, in order to consume the service the web application needs a reference to it. That’s easy to do by doing a right mouse click in the solution explorer on the project “DuckWeb” and then selecting “Add Service Reference…”:

imageIn the “Add Service Reference” dialog I click the “Discover” button and then enter as namespace at the bottom “PondServiceReference”:


Upon clicking “OK” the service reference will be added and I can start using the service as if it was just another .NET library.

image Let’s return to the _submitButton_Click() event handler. Since I now have the service reference available I can write my first implementation:

    1 using System;

    2 using System.Web.UI;


    4 using DuckWeb.PondServiceReference;


    6 namespace DuckWeb {

    7    public partial class _Default : Page {

    8       protected void Page_Load(object sender, EventArgs e) {


   10       }


   12       protected void _submitButton_Click(object sender, EventArgs e) {

   13          var client = new PondServiceClient();


   15          _pondStatusMessage.Text = _pondNameTextBox.Text +

   16             (client.IsFrozen(_pondNameTextBox.Text) ?

   17                                     " is frozen." : " free of ice.");

   18       }

   19    }

   20 }

Note that I added a using statement for the namespace that contains the generated classes for the service reference. Please also note that this code is far from production ready but I’ll come back to this shortly. First let’s see whether this already works as expected. After setting the DuckWeb project as the startup project the browser is launched and I give it a test run:

image Just what I wanted! So all good, right? Not quite! Return to the code where I create the PondServiceClient instance:

   13 var client = new PondServiceClient();

In this line I also create a connection to the service. However, nowhere in the remainder of the code do I close this connection. Of course at some point the instance will be subject to garbage collection and of course the connection will eventually be closed. However, if I rely on this mechanism I have very little control over when that happens. In this simple example it may not be a big issue. However, if the service implementation uses other resources per connection, e.g. a database connection, or if the service is configured to service only a certain number of open connections, e.g. 10, then your system will get into trouble very quickly. Unfortunately some examples on MSDN or similar sites don’t close WCF connections either (see references below), so chances are that we’ll see service clients that won’t be implemented correctly.

Therefore let’s add a line that closes the connection:

   13 protected void _submitButton_Click(object sender, EventArgs e) {

   14    var client = new PondServiceClient();


   16    _pondStatusMessage.Text = _pondNameTextBox.Text +

   17                              (client.IsFrozen(_pondNameTextBox.Text)

   18                                  ?

   19                                     " is frozen."

   20                                  : " free of ice.");

   21    client.Close();

   22 }

Now this looks already better. But it is still not good enough!

What if we cannot connect to the service for whatever reason? If that is the case the generated code will throw different types of exceptions depending on the error. The recommended way (or canonical way if you like) of handling the exception looks as follows:

   23 protected void _submitButton_Click(object sender, EventArgs e) {

   24    var client = new PondServiceClient();


   26    try {

   27       _pondStatusMessage.Text = _pondNameTextBox.Text +

   28                                 (client.IsFrozen(_pondNameTextBox.Text)

   29                                     ?

   30                                        " is frozen."

   31                                     : " free of ice.");

   32       client.Close();

   33    }

   34    catch (CommunicationException ex) {

   35       // Handle exception

   36       client.Abort();

   37    }

   38    catch (TimeoutException ex) {

   39       // Handle exception

   40       client.Abort();

   41    }

   42    catch (Exception ex) {

   43       // Handle exception

   44       client.Abort();

   45    }

   46 }

In all exception handlers I call client.Abort() to cancel the connection. In a real application I would also present a message to a user along the lines “Cannot answer your request as a required service is temporarily not available. Please try again later.”

How about using a using(var client = new PondServiceClient()) contruct:

   49 protected void _submitButton_Click(object sender, EventArgs e) {

   50    using(var client = new PondServiceClient()) {

   51       _pondStatusMessage.Text = _pondNameTextBox.Text +

   52                                 (client.IsFrozen(_pondNameTextBox.Text)

   53                                     ?

   54                                        " is frozen."

   55                                     : " free of ice.");

   56    } // Dispose will be called here.

   57 }

Dispose will be called at the end of the using-block. However, this code doesn’t handle the exceptions yet that you might encounter in the invocation of the service. Furthermore, an exception can also happen when Close() is called from Dispose(). How would you handle those exceptions? The using-construct would lead to very ugly code. For a more detailed discussion see the references at the end of this blog.

This concludes this step of the blog post series on WCF services. There will be at least one more on how to propagate error conditions from a service to a consumer.

Update 09 April 2012: In a newer blog post I’m discussing various options for simplifying the client side. The discussion includes ways for handling everything according to Microsoft’s recommendations while at the same time avoiding code duplication.


Some examples for WCF client code that doesn’t close the connection to the service:

It is correctly mentioned and demonstrated at:

Friday, February 12, 2010

Installing SQL Server 2008 (64bit) on Windows 7 (64bit)

As described here you can run into an error when trying to install Microsoft SQL Server 2008 (x86, 64bit) on a Vista (64bit). The error message is something along the line "The INSTANCESHAREDWOWDIR command line value was not specified. This value must be specified when the INSTANCESHAREDDIR value is specified."

You can run into the same issue on a Windows 7 (64bit) as well as I had to learn today. I used the default installers for SQL Server 2008 Developer Edition, 64 bit.

One additional note, though: If you have accidentally changed the default installation path to something that works for you and then back to the default, the error might not go away. In that case cancel the installation and start all over. This time, don't touch the default installation path.

This approach worked in my case. Of course, if you prefer the software to be installed in a different location or drive, you may have to try the workaround described here.

Thursday, February 11, 2010

Microsoft Visual Studio 2010 RC Released

Microsoft just made available the release candidate (RC) for Visual Studio 2010 and the .NET Framework 4.0. The downloads are available for non-MSDN subscribers as well. The RC does not support Silverlight 4 development. If this applies to you stay on beta 2.

Thursday, February 04, 2010

Using Environment Variables in WiX

Today I ran across a challenge with WiX, which took me a couple of hours to resolve. Maybe I can help you saving this time by describing what I tried to achieve and how I resolved it in WiX.
Although our build machine uses a 32 bit operating system in some cases we build certain solutions on a 64 bit OS. One of these solutions includes a WiX project which packages a merge module for the C runtime libraries. On the 32 bit platform merge modules are located in “c:\Program Files\Common\Merge Modules”. In our WiX installer script (a WSX file) we package a merge module with a hardcoded path. This works fine on a 32 bit operating system.
However, it fails on a 64 bit operating system. There Visual Studio 2008 places the merge modules in “c:\Program Files (x86)\Common\Merge Modules”. As a consequence the hard code path doesn’t work.
I’d like to do set this path differently based on an environment variable. I chose “CommonProgramFiles(x86)” which exists on the 64 bit platform but is undefined on a 32 bit OS. Based on information I found at WiX’s web site, my first attempt looked as follows:
    3 <?ifdef $(env.CommonProgramFiles(x86)) ?>
    4 <!-- Variable is defined, we are building on 64 bit -->
    5 <?define commonProgramFiles = "c:\Program Files (x86)\Common\" ?>
    6 <?else?>
    7 <!-- Variable is not defined, we are building on 32 bit -->
    8 <?define commonProgramFiles = "c:\Program Files\Common\" ?>
    9 <?endif?>
Note, that this is not about the computer on which I want to install the software package. This is about the computer on which the installer is created. So the idea is that I would then be able to use the variable ‘commonProgramFiles’ later in the script, e.g. when referencing a file:
    1 <File Source="$(var.commonProgramFiles)Merge Modules\Microsoft_VC90_CRT_x86.msm" >
    2    ...
    3 </File>
Trouble was that it wouldn’t work. With some further digging I found a message in an email list that contained the helpful hint. The relevant quote is:
“Use <?ifdef?> first to see if it's defined. Don't use $() around it in an <?ifdef?>.”
So I rewrote the the WiX script as follows:
    3 <?ifdef env.CommonProgramFiles(x86) ?>
    4 <!-- Variable is defined, we are building on 64 bit -->
    5 <?define commonProgramFiles = "c:\Program Files (x86)\Common\" ?>
    6 <?else?>
    7 <!-- Variable is not defined, we are building on 32 bit -->
    8 <?define commonProgramFiles = "c:\Program Files\Common\" ?>
    9 <?endif?>
Note how line 3 has changed. Now it worked like a breeze! I can now build the installer on both a 32 bit OS and a 64 bit OS and the project will still find the required merge module.
One further note: If you want use any of the WiX tools in a batch file, you may want to use %WIX% instead of a hard coded path to the toolset.
Jason, thank you very much for your help in sorting this out!
P.S. I haven’t forgotten about the mini-series of blogs about WCF-based services I’ve started a few days ago. It’s still coming!

Wednesday, February 03, 2010

ArgumentException vs ArgumentNullException

Ok, maybe I’m missing the point, but here is an item I don’t understand: When you want to throw an ArgumentException with the parameter name and a message as arguments, then the parameter name is the first parameter. When you use ArgumentNullException it’s just the other way round. Sounds complicated? It becomes more apparent once we look at some source code:

    1 public void DoSomething(string paramName) {

    2    if (paramName == null) {

    3       throw new ArgumentNullException(

    4          "paramName", // Must be first parameter here

    5          "Parameter cannot be null."

    6       );

    7    }

    8    if (paramName.Length < 10) {

    9       throw new ArgumentException(

   10          "String must have at least 10 characters.",

   11          "paramName"  // Must be second parameter here

   12       );

   13    }

   14    // ... rest of the method ...

   15 }

I haven’t noticed this in the past but nevertheless: Unless I’m totally overlooking the brilliant idea behind this, I’m not quite sure whether this inconsistency makes using these classes easier…

It’s certainly not a big issue and it’s probably too late anyways to fix this particular problem. I still wanted to rant a bit… and I’ll take this as an opportunity to search for similar inconsistencies in my own code.

I just noticed: This is my 100th post on this blog! Time to celebrate. Cheers!

Tuesday, February 02, 2010

Implementing a WCF Service in Visual Studio 2008

I’m aware that there are quite a few examples already for how to implement and consume services using WCF in Visual Studio 2008. However, I’d like to provide a slightly different example by providing some additional aspects that you may want to consider for commercial deployments. This includes propagating error conditions and system design aspects, all using the same running example. At times this will certainly stretch the blog format somehow and I may provide a more detailed documentation in a different format.

Enough talk. Let’s get something done!

WCF (Windows Communication Foundation) is a very powerful part of the Microsoft .NET framework. In this post I will show you how to implement a very simple service. And as a running example I’ll use ducks. So the service will be called PondService where ducks can feed. As a tool I’ll use Visual Studio 2008 augmented with ReSharper and AnkhSVN. ReSharper (commercial) is a very powerful tool for refactoring (has some limitation in certain scenarios, e.g. memory consumption) while AnkhSVN (free, open-source) is an extremely helpful plug-in and client for Subversion.

Creating The Solution

As a first step I need an empty solution, which I’ll call RubberDuck. Here’s the recipe:

  1. From the menu select “File” - “New” - “Project…”
  2. In the tree on the left expand “Other Project Types”
  3. Select “Visual Studio Solutions”, then on the right “Blank Solution”
  4. Enter “RubberDuck”

Here is what it should look like:


Click “OK”.

Add the Service Library

Next, I’ll add a service library to the solution. We’ll call it DuckServiceLibrary. Here’s the recipe:

  1. In the “Add New Project” dialog in the tree on the left select “Visual C#” then “WCF”.
  2. Then select “WCF Service Library” on the right.
  3. As a name enter “DuckServiceLibrary”.

At this stage the dialog should look as follows:


After I click OK the solution looks as follows:


Next we’ll add the PondService to the new service library. For this step you need to be aware that there are (at least) two items that look as if they are a fit: “Windows Service” and “WCF Service”. The former would be an old-style web service which technically would work. However, we choose “WCF Service” in the “Add New Item” dialog box. Here is how the dialog looks before I click “Add”:


The solution still contains IService1.cs and Service1.cs which were generated when I added the service library. I simply delete them. However, there is more cleanup work required. The DuckServiceLibrary contains a file named “app.config”. Of course I could go in and just delete the entries for Service1. However, there is a second option: The Microsoft Service Configuration Editor. You can launch it from the context menu on “app.config”:


There are two places in the Service Configuration Editor (SCE) where I’ll remove the configuration entries for Service1. First there is the Service1 and there is the Service1Behavior:

image Delete the two highlighted nodes. Then make sure you client “Save” before exiting. While I’m comfortable to edit XML files I prefer the SCE since it is harder to accidentally delete items you still need.

The Actual Service Implementation

With all of this in place (just takes a couple of minutes, once you get used to it), I’m now in a position to define the interface I’d like the service to have. To stay with the running example the duck would like to know whether a particular pond is currently frozen or not. During winter a frozen pond doesn’t really help finding food. After removing all unused using’s (ReSharper function) the service interface looks as follows:

    1 using System.ServiceModel;


    3 namespace DuckServiceLibrary {

    4    [ServiceContract]

    5    public interface IPondService {

    6       [OperationContract]

    7       bool IsFrozen(string pondName);

    8    }

    9 }

The implementation is even simpler. Using the “fake it ‘till you make it” I simply return true. Of course real ducks wouldn’t like that service level so you probably want to offer something more substantial!

    1 namespace DuckServiceLibrary {

    2    public class PondService : IPondService {

    3       #region Implementation of IPondService


    5       public bool IsFrozen(string pondName) {

    6          return true;

    7       }


    9       #endregion

   10    }

   11 }

By convention I’ve surrounded the service implementation with a region. In this example it doesn’t make a big difference but once a class becomes larger then it pays off to use a region per interface implementation.

Trying Out the Service

Although I haven’t implemented a client I can still try out what I have so far. Hit F5 and Visual Studio will compile the service library and launch a WcfServiceHost that host the service. It will also launch a WCF Test Client with the PondService added to it already:

image To try the service out I double click on the “IsFrozen()” operation. The WCF Test Client will open a tab in the right hand pane into which I can enter a pond name as follows:

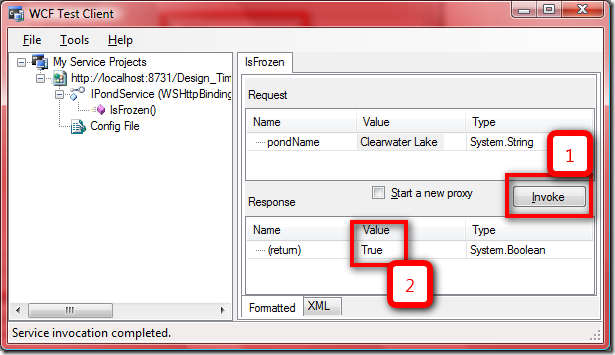

image Next I click the Invoke button and I get the response from the service. I can verify the response in the lower right part of the WCF Test Client window:

image By the looks of it we didn’t make a mistake with our implementation: The Clearwater Lake is frozen.

So this is it for this post. In subsequent posts I’ll cover:

  • How to implement a WCF client?
  • How to exchange data between server and client?
  • How to propagate error conditions?
  • Others

Stay tuned!
